Through years of hardware manufacturing and testing, we have learned that even a premium $400 technical backpack or custom hand-stitched leather bag can fail due to one microscopic component — a compromised Metal Ring.
When selecting webbing connectors, buyers and designers often treat the humble Rectangle Ring as a basic commodity. However, in our engineering laboratory, we treat it as a precision component requiring a delicate balance of metallurgical ductility, clearance tolerances, and surface friction. This guide summarizes our practical insights, stress-test observations, and sizing standards to help you select hardware that lasts.
Structural Classification and Load Dynamics
In our factory catalog and custom engineering projects, we classify rectangular wire and cast loop components based on their geometry and load behaviors:
| Hardware Category | Structural Geometry | Primary Load Dynamics | Best Application |
|---|---|---|---|

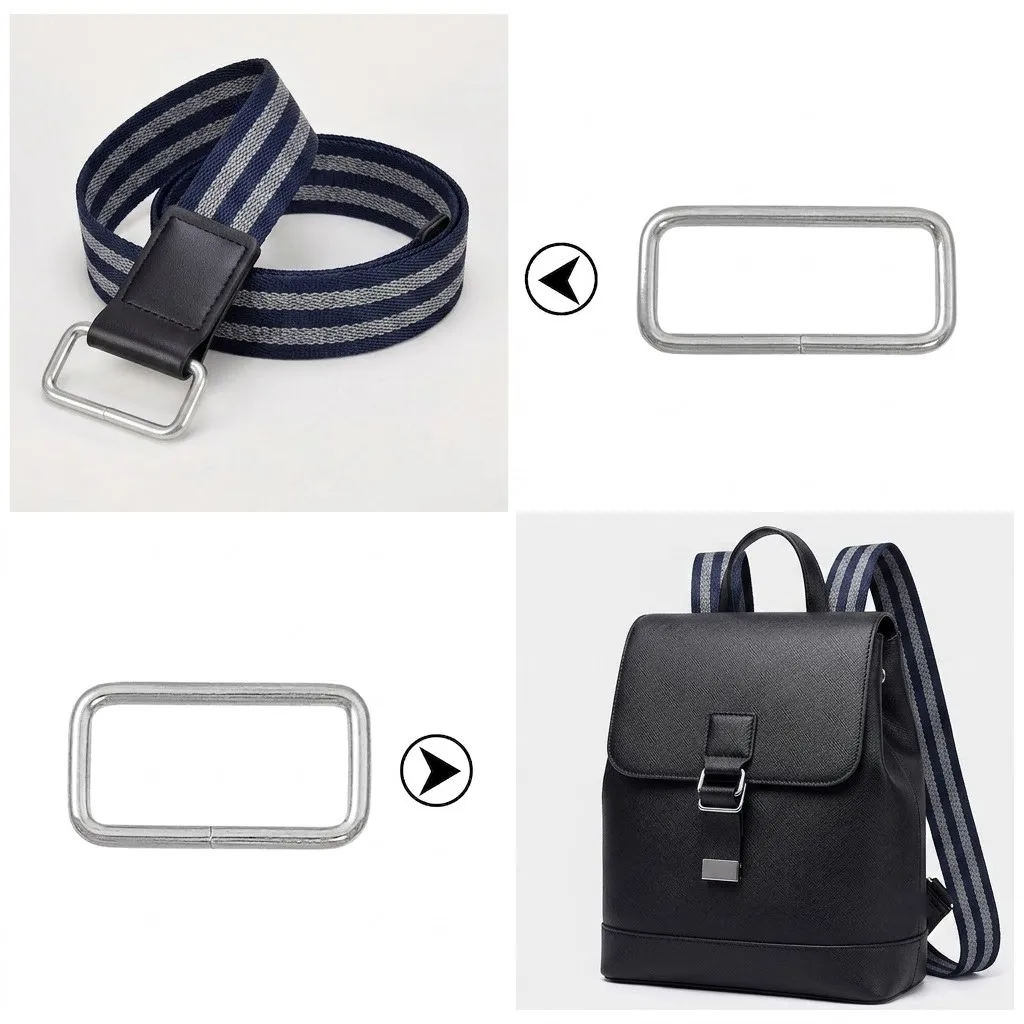

| Rectangle Ring | 4-sided loop, flat top/bottom, straight sides | Direct inline tension along the flat axis | Bag shoulder strap anchors, pet collars |
| Square Ring | Equal 1:1 aspect ratio geometric ring | Multi-directional strap attachment | Tactical vest points, harness attachments |
| Triglide (Slider) | Rectangular frame with center crossbar | Friction lock & webbing adjustment | Adjustable backpack straps, belt loops |
| Split-Bar Ring | Rectangular ring with pre-cut insertion slot | Retrofit / Non-sewing field fix | Quick repair of broken strap anchors |
| Ladder Lock | Angled frame with dynamic thumb lever | One-way dynamic cinch and release | Compression straps, sternum adjusters |
Material Performance: Brass, Steel, and Zinc Alloy
One of the biggest mistakes we see during client consultations is choosing components labeled generically as "metal." In our metallurgical pull tests, material behavior under stress varies drastically across brass, steel, and die-cast alloys.
Solid Brass (C36000 Grade)
For custom leathercraft and high-end marine bags, C36000 solid brass is our ultimate standard. It is completely non-corrosive, highly ductile, and ages gracefully with a rich patina. In our laboratory load tests, a standard 1-inch solid brass rectangular ring comfortably withstands tensile breaking loads exceeding 350 kgf (3.43 kN).
Formed Steel Wire: Welded vs. Non-Welded
Cold-rolled steel wire delivers exceptional rigidity at an economical cost. Our welded steel rings close the joint using electric resistance welding, ensuring the loop cannot pull apart under extreme force. Our non-welded steel rings rely on wire thickness; they are tumbled smooth for a seamless feel, ideal for everyday bag straps with loads under 120 kgf.
Die-Cast Zinc Alloy Considerations
Sizing Mechanics & Preventing Webbing Slippage
In our quality testing, strap slippage is the most common operational issue brought to us by bag designers. We have identified three critical factors controlling friction and hold-strength:
- Webbing Thickness (t) vs. Frame Gap (c): If the inner clearance relative to webbing thickness is too loose, mechanical friction drops dramatically.
- Surface Finish Texture: High-gloss polished finishes reduce surface bite (μ ≈ 0.15), whereas matte black or electrophoretic finishes increase friction (μ ≈ 0.35).
- The Inner Width Allowance: The hardware inner width must exceed webbing width by an exact tolerance of +1.0mm to +2.0mm.
Field Applications & Hardware Selection
Case 1: Expedition Backpack Field Repairs
Scenario: Replacing broken plastic ladder locks on a 110L haul bag during travel.
Our Approach: We install a Split-Bar Open Metal Ladder Lock. The open slot slides directly into existing sewn webbing loops without cutting seams, instantly restoring up to 200 kgf load capacity.
Case 2: Heavy Leathercraft Assembly

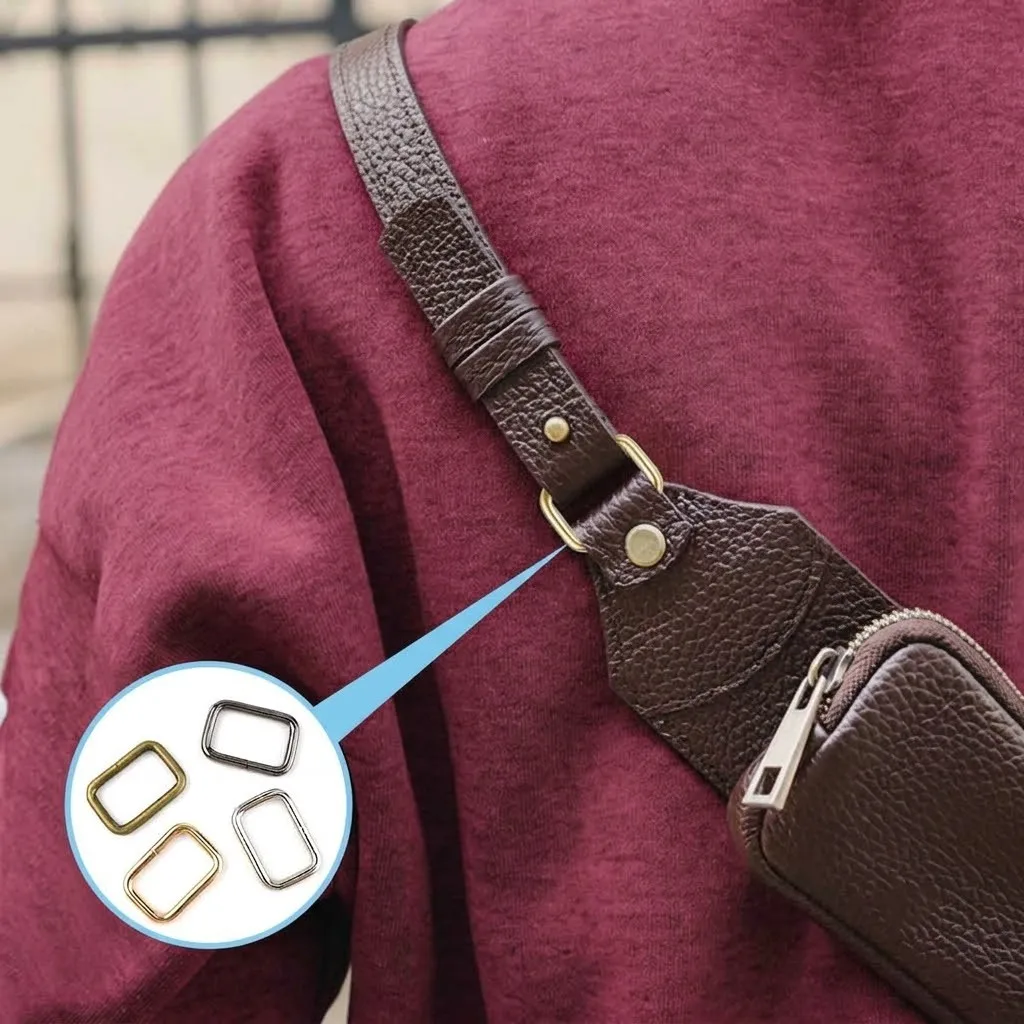

Scenario: Securing 4mm thick saddle leather shoulder straps to heavy messenger bags.
Our Approach: Standard thin wire loops crush thick leather edges. We specify a Deep-Frame Cast Solid Brass Ring with generous interior radii to allow fluid strap rotation.
Case 3: Tactical & Modular Gear
Scenario: High-strength strap adjustments for tactical vests requiring low reflection.
Our Approach: We utilize Matte Black Electrophoretic Coated Steel to eliminate glare, prevent saltwater corrosion, and withstand heavy shear forces.
Case 4: Premium Pet Gear & Fashion
Scenario: Handbags and dog harnesses requiring high aesthetic shine and corrosion resistance.
Our Approach: We apply multi-layer electroplating (Rose Gold, Gunmetal, or Chrome over solid brass) with hand-polished chamfered edges to protect delicate materials.

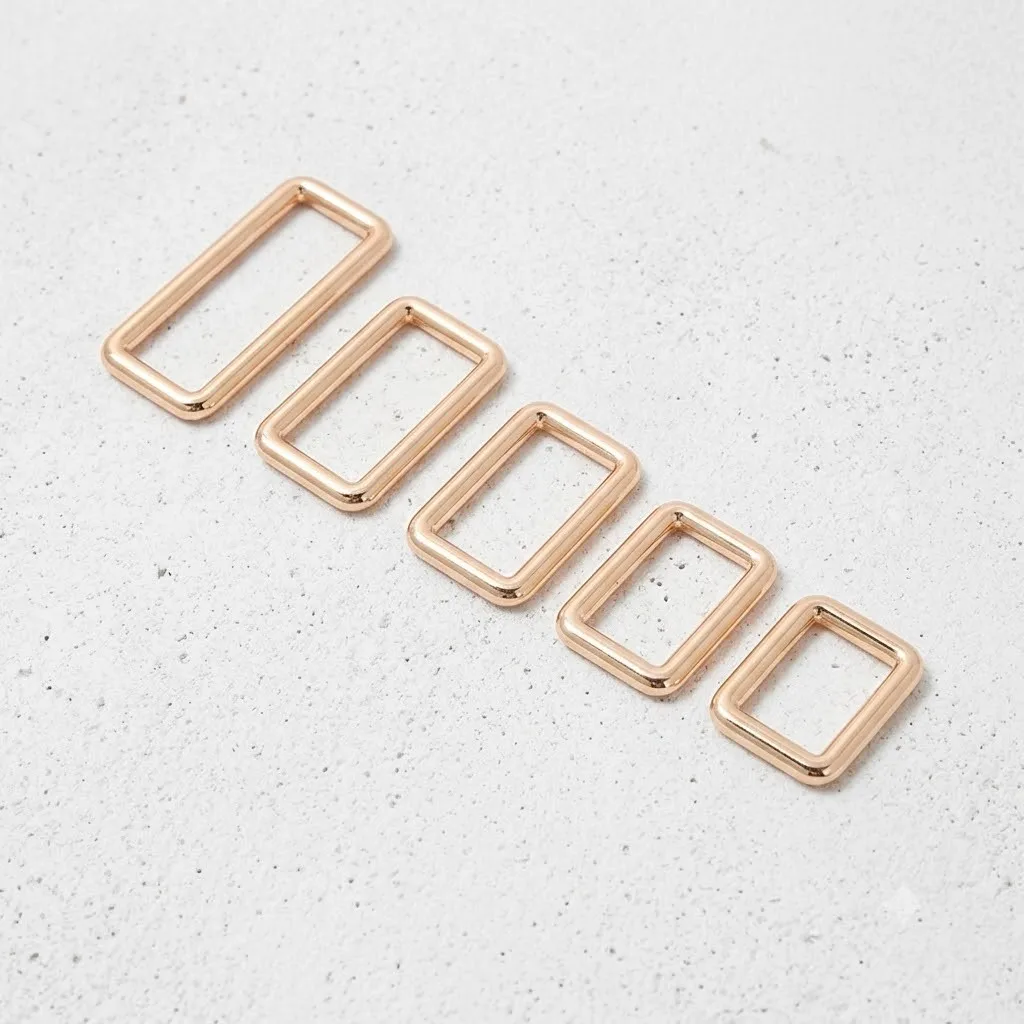

Master Hardware Specification Guide
We use this master spec matrix during production configuration and bulk order sourcing:
| Webbing Width | Rec. Inner Width | Recommended Material | Min. Tensile Load | Target Application |
|---|---|---|---|---|
| 5/8" (16mm) | 17.0 mm | Plated Steel / Brass | 80 kgf | Small pet collars, wristlets, key fobs |
| 3/4" (19mm) | 20.0 mm | Solid Brass / Steel Wire | 120 kgf | Handbags, light cross-body straps |
| 1" (25mm) | 26.0 - 26.5 mm | Solid Brass / Welded Steel | 250 kgf | Universal Standard: Backpacks, belts |
| 1-1/2" (38mm) | 39.5 - 40.0 mm | Forged Brass / Welded Steel | 350 kgf | Heavy duffels, large pet harnesses |
| 2" (50mm) | 51.5 - 52.0 mm | Heavy Steel Wire / Titanium | 500+ kgf | Cargo tie-downs, military gear, luggage |
4 Bench Inspection Tests for Quality Control
Before releasing any production batch, our quality control team subjects every hardware lot to four hands-on bench tests:
- Microfiber Burr Test: Wipe a microfiber cloth across internal contact edges. Any snagging reveals microscopic stamping burrs that will wear down nylon webbing over time.
- Plating Adhesion Test: Perform a cross-hatch scratch test on electroplated coatings to ensure multi-layer adhesion against environmental corrosion.
- Dimensional Tolerancing: Measure top and bottom inner widths with digital calipers. We enforce a strict tolerance limit of ±0.2mm.
- Solid Brass Magnet Verification: Genuine C36000 solid brass is entirely non-magnetic. If a magnet pulls the ring, it is brass-plated steel or zinc alloy.
Our Engineering Recommendation
Selecting hardware is not merely a design choice — it is an investment in product longevity and user safety. By matching material strength (Solid Brass or Welded Steel for high loads; Non-Welded for standard use), maintaining our +1.5mm sizing clearance rule, and insisting on burr-free multi-layer finishes, you ensure hardware that holds up reliably in the workshop and in the field.
